PCB Fabrication
Specializing in precision PCB manufacturing (1-32 layers) with dedicated professional support

PCB
Capabilities

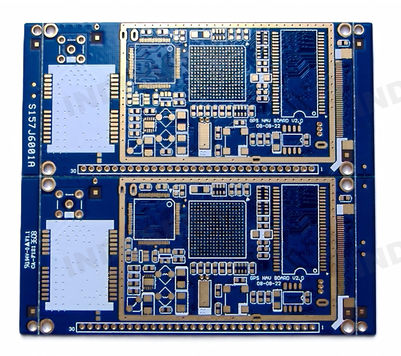

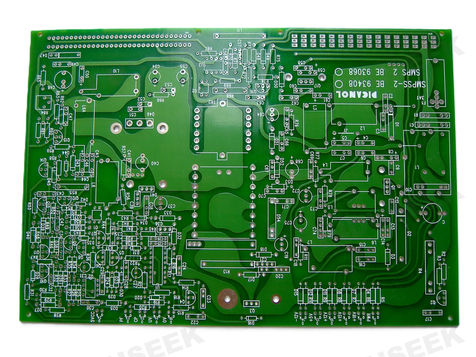

Custom PCB Solutions
Quick-Turn PCB solutions from prototype to mass production
Feature | Capability |
|---|---|
Quality Grade | Standard IPC 3 |
Number of Layers | 1 - 32layers |
Build Time | 1 - 5 days, 1 - 2 weeks, or scheduled deliveries |
Material | FR - 4 Standard Tg 150°C |
FR4 - High Tg 170°C | |
FR4 - High - Tg 180°C | |
FR4 - Halogen - free | |
FR4 - Halogen - free & High - Tg | |
Board Size | Min 6*6mm | Max 600*700mm |
Board size tolerance | ±0.1mm - ±0.3mm |
Board Thickness | 0.4mm - 3.2mm |
Board Thickness Tolerance | ±0.1mm - ±10% |
Copper Weight | 0.5oz - 6.0oz |
Inner Layer Copper Weight | 0.5oz - 2.0oz |
Copper Thickness Tolerance | '+0μm +20μm |
Min Tracing/Spacing | 3mil/3mil |
Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
Silkscreen Color | White, Blue, Black, Red, Yellow |
Surface Finish | HASL - Hot Air Solder Leveling |
Lead Free HASL - RoHS | |
ENIG - Electroless Nickle/Immersion Gold | |
ENEPIG - Electroless Nickel Electroless Palladium Immersion Gold | |
Immersion Silver | |
Immersion Tin | |
OSP - Organic Solderability Preservatives | |
Min Annular Ring | 3mil |
Min Drilling Hole Diameter | 6mil, 4mil - laser drill |
Min Width of Cutout (NPTH) | 0.8mm |
NPTH Hole Size Tolerance | ±.002" (±0.05mm) |
Min Width of Slot Hole (PTH) | 0.6mm |
PTH Hole Size Tolerance | ±.003" (±0.08mm) - ±4mil |
Surface/Hole Plating Thickness | 20μm - 30μm |
SM Tolerance (LPI) | .003" (0.075mm) |
Aspect Ratio | 1.10 (hole size: board thickness) |
Test | 10V - 250V, flying probe or testing fixture |
Impedance tolerance | ±5% - ±10% |
SMD Pitch | 0.2mm(8mil) |
BGA Pitch | 0.2mm(8mil) |
Chamfer of Gold Fingers | 20, 30, 45, 60 |
Other Techniques | Gold fingers |
Blind and Buried Holes | |
Peelable solder mask | |
Edge plating | |
Carbon Mask | |
Kapton tape | |
Countersink/Counterbore hole | |
Half - cut/Castellated hole | |
Press fit hole | |
Via tented/covered with resin | |
Via plugged/filled with resin | |
Via in pad | |
Electrical Test |
Gerber Files
-
Note that Gerber files must be RS-274x format
-
Drill file(pcbname.TXT) should be Excellon format, and make sure it includes drills size and position data
-
Besides the production Gerber files, We also accept PCB files generated by Eagle, Altium Designer, PADS
-
Please leave a comment in the order for special requirements
-
Top Layer:
-
Solder Stop Mask top:
-
Silk Top:
-
NC Drill:
-
pcbname.GTL
-
pcbname.GTS
-
pcbname.GT
-
pcbname.TXT
-
Bottom Layer:
-
Solder Stop Mask Bottom:
-
Silk Bottom:
-
Mechanical Layer:
-
pcbname.GBL
-
pcbname.GBS
-
pcbname.GBO
-
pcbname.GML
